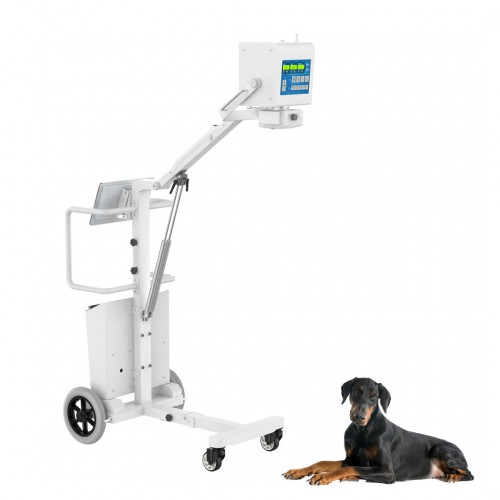

WTX-05DR Veterinary Digital Portable X-ray machine
- Brand: Ivetsupply
- Availability: In Stock
-
Our Price:$22150.00
WTX-05DR Veterinary Digital Portable X-ray machine
Place of Origin:Jiangsu, China
Brand Name:Healicom
Model Number:WTX-05DR
Power Source:Electric
Warranty:1 Year
After-sale Service:Online technical support
Material:metal
Shelf Life:1years
Quality Certification:ce
Instrument classification:Class II
Safety standard:GB/T18830-2009
Product name:Veterinary Portable X-ray
Model:WTX-05DR
Voltage:AC220V ± 22V
Power:5kW
kV Range:40~110kV mA
Range:20~100mA
mAs Range:0.2-200mAs
Exposure time:0.01S~4S
Weight:19 kg
Dimension:290x265x230 mm
Products Description
Feature:
●Profession Veterinary Acquisition Software Support different brand of X-ray generators Support Multi- languages Support RIS/PACS/DICOM Printer Connection Support professional tools
●Professional and efficient DR workstation Patient management Image capture Image post-processing Print and storage.
Product Paramenters
| Main Component Tech Spe. | ||
| Voltage | AC220V ± 22V | |
| Generator | Power | 5kW |
| kV Range | 40～110kV | |
| mA Range | 20～100mA | |
| mAs Range | 0.2-200mAs | |
| Working Frequency | ≥40kHz | |
| Exposure time | 0.01S～4S | |
| X-ray tube | Anode heat storage | 56KHU |
| Focus | 1.8mm | |
| Inherent filtration | 1mm Al/75Kv | |
| Light source | LED | |
| Touch Screen | Dimension | 10.4inch |
| Physical Spe | ||
| Main Unit | Weight | 19 kg |
| Dimension | 290×265×230 mm | |
