Veterinary Stationary X-ray Equipment Digital X-ray Machine 320mA

Voltage :

Plug :

Qty : - +

Guaranty: 12 Months Warranty

Shipping: Free Shipping Over $49!

Component:
1.320mA HF generator and Console

2. Collimator

3. X-ray tube(Brand Toshiba,Made-in-Japan )

4. Pet table

5. Flat panel detector(Brand Iray,Made-in-China)

6. Computer and LCD

Specification:

Maximum output power

Main Component Technical Spe.
320mA generator	20kW
	Input voltage range		AC220V±22V
	Applicable support		Radiography
	Inverter frequency		100kHz
	Tube voltage range of radiography		40kv~120kv
	Range of tube current		32~320mA
	Range of exposure time		0.01s~5s
	mAs range		0.32mAs~320mAs
	Communication interface		RS-232
	Other		Capacity lock automatically, fault diagnosis automatically, self protection Small size, located inside of the table

X-ray tube	Max. Tube voltage		125kV
	Focus		Small focus:1.0mm Large focus:2.0mm
	Anode input power		Small focus:20KW Large focus:40KW
	Anode speed		2700 R/M
	Target angle		16°
	Anode heat content		100kJ(140kHU)

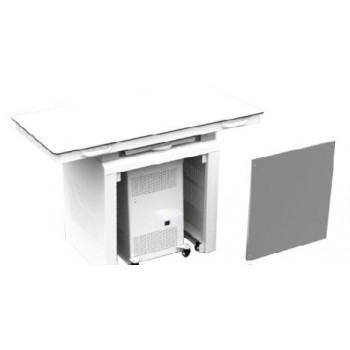

pet table	Model		P5
	Detector size		17X17inch
	Load bearing		150kG
	Size		LXWXH=1400X700X850mm

flat panel detector (made-in-Korea)	Material		CSI
	Scanning Area		17X17inch
	A/D Conversion		16 Bit
	Total Pixel matrix		3,328(h)X3,328(v)(11 million pixels)
	Pexel Size		127μm
	Image Preview Time		Not more than 2s

computer and LCD		CPU	≥2.8GHz
		Memory	4GB
		Disk Capacity	500G
		Medical LCD	23″LCD
		Double LCD	Show the image in the same time
		Function	Can perform image acquisition, image zoom, image brightness adjustment, image contrast adjustment, image rotation, image rollovers
		Connection	The network interface of 100 m; Able to Dicom3.0 image transmission, and can query, editing and print, etc
		Management	DR system to manage pets and image information
