Veterinary Digital Portable X-ray Machine
- Brand: Ivetsupply
- Availability: In Stock
-
Our Price:$7380.00

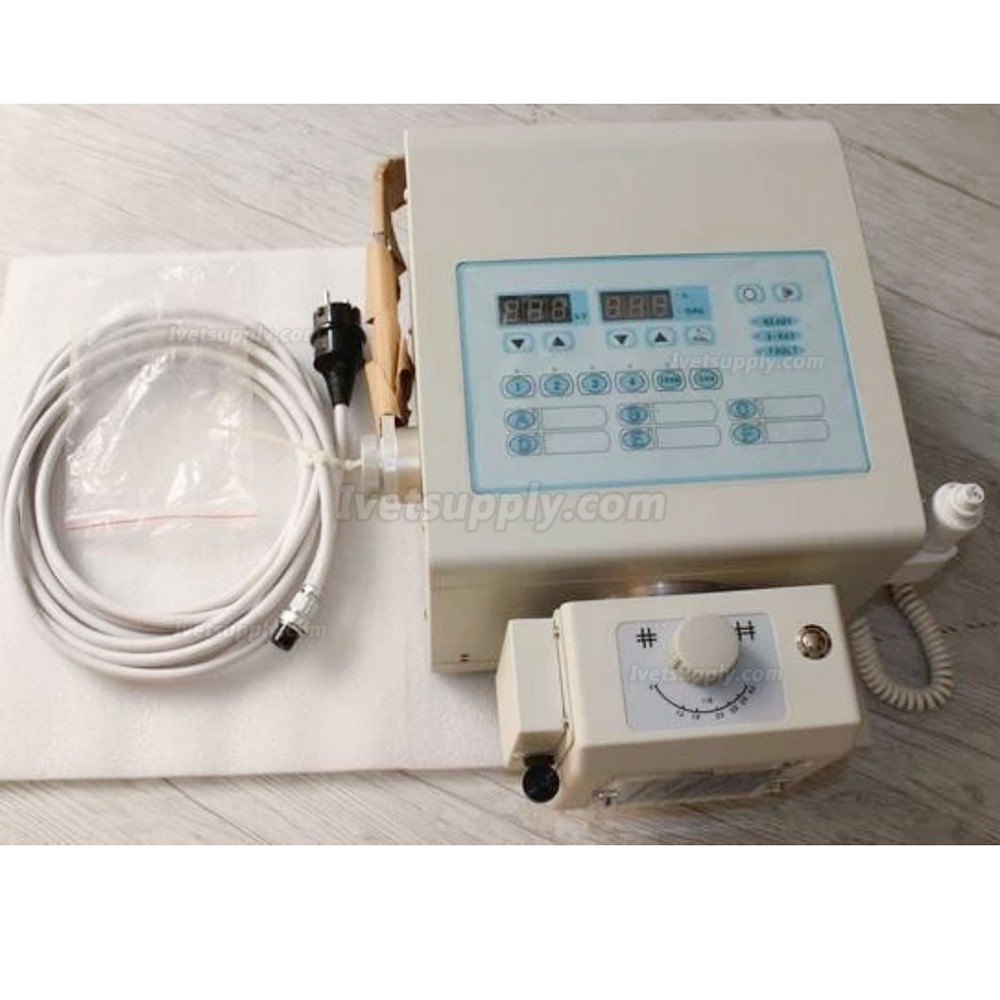

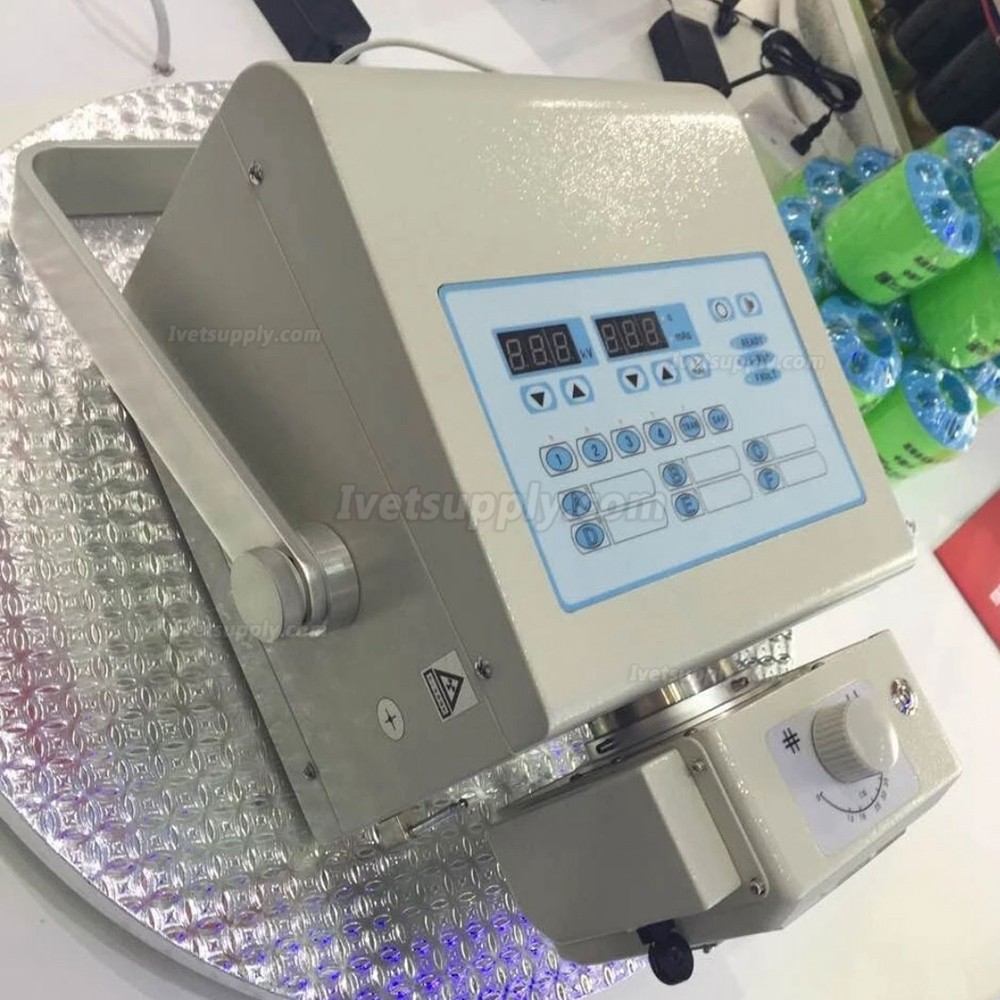

Veterinary Digital Portable X-ray Machine
Applicable scope:
4 kW digital portable high frequency x ray machine for medical diagnosis, use for human limbs checking, diagnosing, especially used in pet clinic, etc.
Characteristics:
1. Deft and concise
2. 6 periods of digital LED display
3. 48 kinds of presupposed anatomy memory pattern choices
4. Accuracy control method of simulation and double digital loops
5. High precision control of tube voltage, tube current
6. Failure self-protection, self-diagnosis
Product Paramenters
|
Model
|
WTX-04DR
|
|
Input power
|
Voltage: AC220V ± 22V, frequency: 50/60 Hz±1Hz;
Power capacity: ≥5kVA; Inner resistance≤0.5Ω |
|
Maximum output power
|
P =110kV×36mA=4kW
|
|
Nominal power
|
100kV，40mA，0.1s，4kW
|
|
Frequency
|
≥40kHz
|
|
KV adjusting range
|
40kV～110kV, step adjustment is 1 kV
|
|
mA adjusting range
|
36mA～60mA
|
|
mAs adjusting range
|
1mAs-190mAs,shifted adjustment
|
|
S adjusting range
|
0.04s～3.2s
|
|
Toshiba X -ray tube
|
Focus:0.6/1.6mm；
Anode heating capacity:76kHU |
|
Size
|
290×260×230 mm
|
|
Weight
|
18.8kg
|
|
Accessories
|

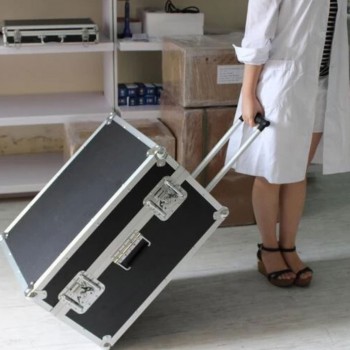

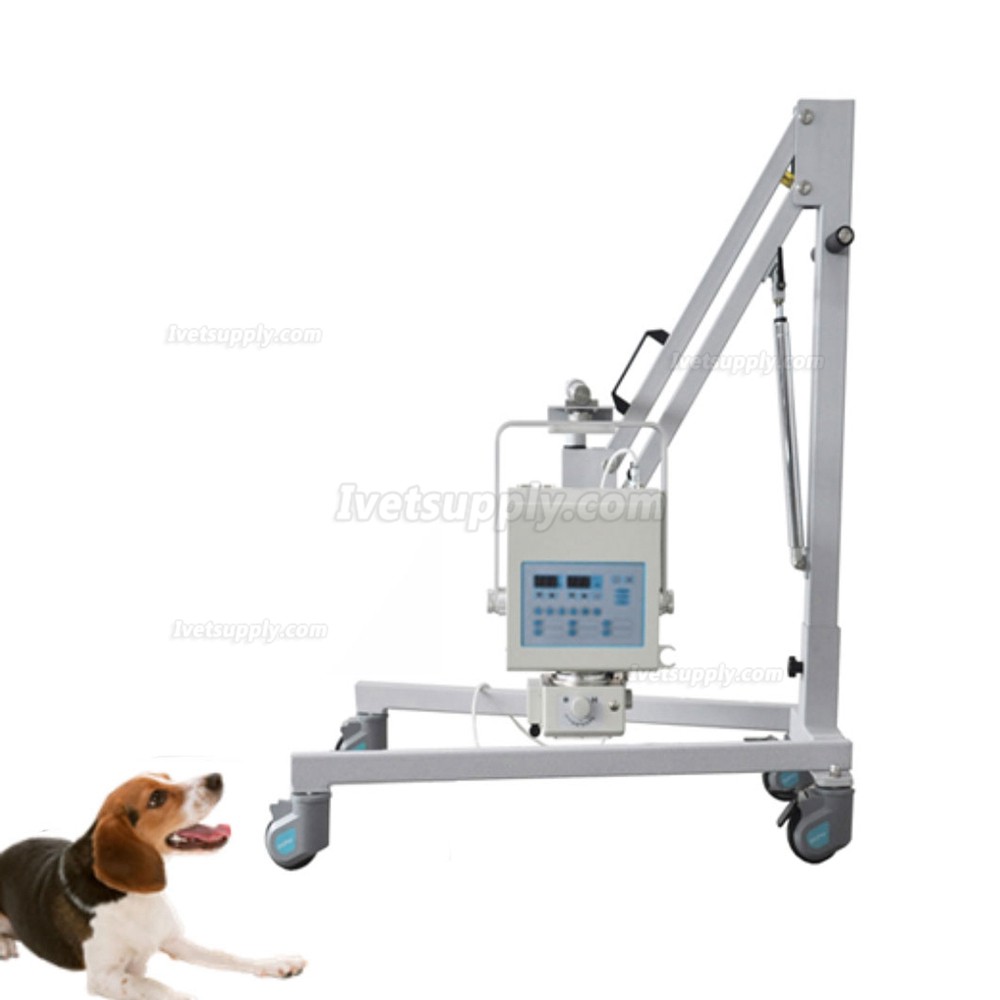

1.Remote control 2.Aluminum box 3.Stand machine frame
|
