Veterinary X-ray Machine HX-100BY Vet Animal Mobile 100mA X-ray System Machine veterinary x-ray machine
- Brand: Ivetsupply
- Availability: In Stock
-
Our Price:$19800.00
Veterinary X-ray Machine HX-100BY Vet Animal Mobile 100mA X-ray System Machine veterinary x-ray machine
Place of Origin:Jiangsu, China
Brand Name:Waleeta
Model Number:HX-100BY
Properties:Diagnosis & Injection
Product name:veterinary mobile xray system
Brand:Waleeta
Warranty:12 Months
Columns turning angle:±45°
Voltage:180~240V
Frequency:50Hz
Internal resistivity:<1.0Ω
Rating:≥8k VA
Time:0.08s ~6.3s
Maximum remote control distance:7m
General Description:
Take x-ray photography of the head, extremities, chest cavity and other parts of human, can be used in the ward or in operation room.
Feature:
1. Single focus, full-wave rectifier, combined X-ray generator
2. SCM control (easy to maintain and repair)

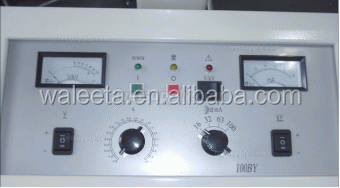

3. High visual and operational console
4. Prestore 8 kinds of photography parameters and select, modify, store the parameters under the condition of choice
5. Power voltage (V), photograph kilovolt (KV) infinitely variable control
6. Premier high voltage with high power SCR zero control circuit
7. Function of load chains, exposure time control, auto alarm, preheat filament,subassemblies’ temperature control, and so on.
8. Cantilever structure makes the small volume and easily moving
Main Technical Parameter:
| Power supply |
Voltage: 180-240 V Frequency: 50HZ Internal resistivity <1.0Ω Current 35A instant Rating ≥8k VA |
| Photography |
Voltage: 50-90 kV Current :16mA 32mA 63mA 100mA Time 0.08s ~6.3s X-ray tube focus 4.3mm*4.3mm |
| Maximum remote control distance | 7m |
| Maximum height of focal spot from floor | >1775 mm |
| Minimum height of focal spot from floor |
<480 mm |
| Columns turning angle | ±45° |
| Collimator |
maximum film size at 650mm focal distance: 350*350 mm |
| Transport dimension | 150*77*145cm
Net Weight: 150 kg Gross Weight: 250kg |
|
Focus of X-ray Tube |
Photograph Current (mA) |
Max Photograph Voltage (kvp) |
Max Allowable Exposure Time(s) |
|
Big Focus |
16 |
90 |
6.3 |
|
32 |
90 |
6.3 |
|
|
63 |
90 |
4.0 |
|
|
100 |
80 |
3.2 |
