JNR ET-200+ Veterinary Multi Parameter Patient Monitor with ECG SPO2 ETCO2
- Brand: JNR
- Availability: In Stock
-
Our Price:$2659.99
JNR ET-200+ Veterinary Multi Parameter Patient Monitor with ECG SPO2 ETCO2
1.Power lamp, long press open, again shutdown
2.Mute key
3.Confirm button, same function as “Wheel button”
4.Return button
5.Wheel button
6.No function of the following two buttons
7.Menu button
8.Green light, AC power supply status indication, plug in the power line, the LED light (weak), yellow lantern out
9.Yellow light, unplug the power cord, replaced by battery power, the LED will be lit, green lights out
10.Red lights, no lights when the battery cable, the battery, the LED will light.
.jpg "JNR ET-200+ Veterinary Multi Parameter Patient Monitor with ECG SPO2 ETCO2")
.png "JNR ET-200+ Veterinary Multi Parameter Patient Monitor with ECG SPO2 ETCO2")

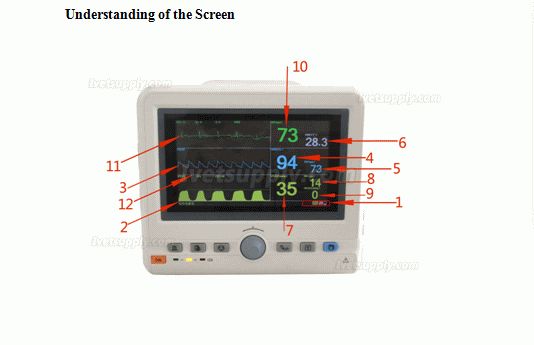

1. Status bar 2. CO2 concentration waveform
3. Pulse waveform 4. SPO2 concentration
5. Pulse rate (PR) 6. Temperature rate
7. ETCO2 concentration 8. Respiratory rate
9. INCO2 concentration 10. Heart rate (HR)
11. ECG waveform 12. ETCO2 concentration (38mmHg reference line)
.png "JNR ET-200+ Veterinary Multi Parameter Patient Monitor with ECG SPO2 ETCO2")
.jpg "JNR ET-200+ Veterinary Multi Parameter Patient Monitor with ECG SPO2 ETCO2")
