CONTEC CA10M-VET Veterinary EtCO2 End Tidal Co2 Monitor Mainstream Capnograph





Capnograph adopts mainstream method to measure the end-tidal carbon dioxide (EtCO2) and airway respiration rate (AwRR). It can detect pulmonary ventilation function and reflect the circulation and pulmonary blood flow condition, as well as indirectly reflect the alveolar ventilation, which is applicable for use in emergency department, ICU, operating room, respiratory department and other occasions.



1) End-tidal CO2 measurement function

2) Respiration rate measurement function

3) Over-limit alarm function for End-tidal CO2 and respiration rate

4) Low battery alarm function



End-tidal CO2 measurement:

1）Measurement range: 0 ~150mmHg

2）Resolution: 1mmHg

3）Accuracy:

0～40 mmHg：±2 mmHg

41～70 mmHg：±5% of readings

71～100 mmHg：±8% of readings

101～150 mmHg：±10% of readings



Respiration rate measurement:

1）Measurement range: 2rpm～150rpm

2）Resolution: 1rpm

3）Accuracy: ±1rpm



Safety characteristic:

1）Device type: internally powered equipment

2）Degree of protection against electric shock: type BF applied part

3）Protection grade: IP22

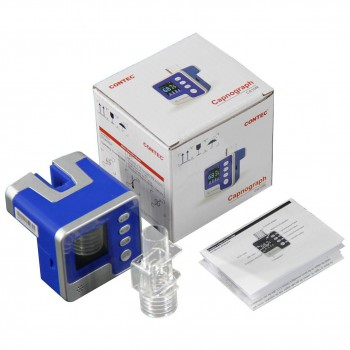

★ A User Manual

★ An Adult/Pediatric adapter



Physical Characteristic

Dimension: 55×52×59mm

Weight: 97g (with batteries)

Working environment

Temperature: 5℃~40℃

Relative humidity: 30%~ 75%, no condensation

Atmospheric pressure: 700hPa~1060hPa

Power supply: DC 3V (2 AAA dry batteries)

Input power: ≤1VA
