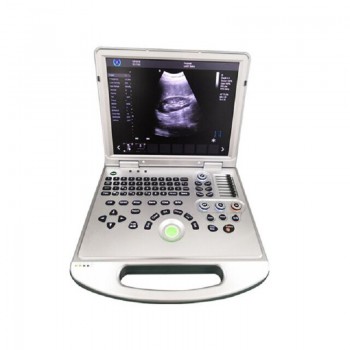

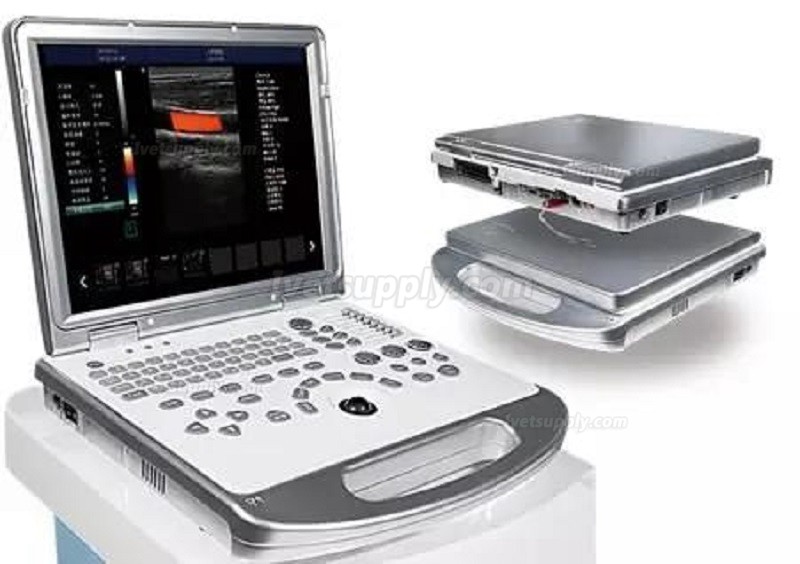

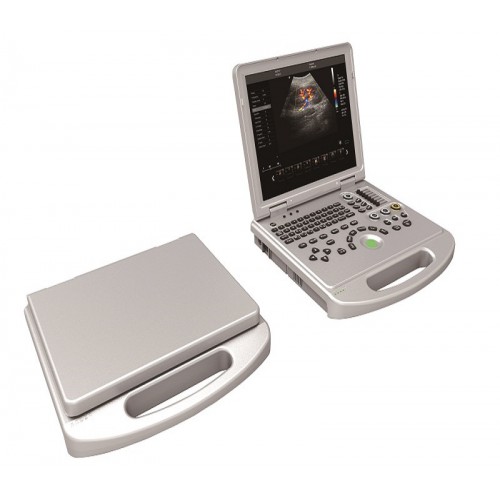

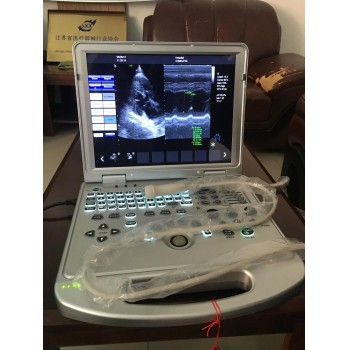

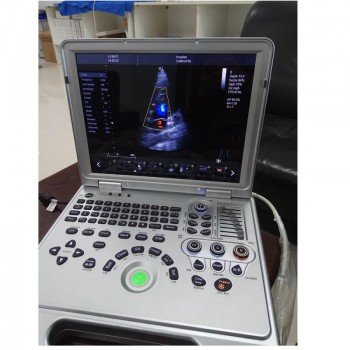

HUC-250 Portable 2D/3D Color Doppler Ultrasonic Diagnostic System Animal Laptop Ultrasound Scanner

HUC-250 Portable 2D/3D Color Doppler Ultrasonic Diagnostic System Animal Laptop Ultrasound Scanner

Abdomen / Cardiac / Obstetrics / Gynecology /

Urology / Andrology / Small Parts / Vascular /

Pediatrics / Musculoskeletal

Voltage: 100 V~240 V

Power: DC12.8V  3A

Frequency: 50/60 Hz

Real-Time Image Zoom

Zoom Range: 100%~400%

Up/Down/Left/Right Inversion

Convex Array Probe

Frequency:Central 3.5 MHz

Min. 2.0 MHz

Max. 5.5 MHz

Pitch: 0.516 mm

Radius: 60 mm

Number of Elements: 128

Linear Array Probe:

Frequency:Central 7.5 MHz

Min. 6.0 MHz

Max. 12.0 MHz

Range:6.0,6.5,7.0,7.5,10,12Mhz

Pitch: 0.352 mm

Radius: N/A

Number of Elements: 128

Intra-Cavity Probe:

Frequency:Central 6.5 MHz

Min. 5.0 MHz

Max. 9.0 MHz

Pitch: 0.216 mm

Radius: 10 mm

Number of Elements: 128

Phased Array Probe:

Frequency: Central 3.0 MHz

Min. 2.0 MHz , Max.5.0 MHz

Pitch: 0.300 mm

Radius: N/A

Number of Elements: 128

4D Volume Probe (Optional)

Frequency:Central 4.0 MHz

Min. 2.0 MHz , Max. 5.5 MHz

Number of Elements: 128

1.Intuitive Windows-based operating principles
2. User-centric control panel with HomeBase layout and control customization

3. On/Off task light and back-lit illumination of control panel
4. Variable brightness indicates active state of function keys
5. Easily accessible, full size QWERTY keyboard for text entry, function keys and system programming

6. Cine Playback,Multiple Arrows,Configurable Worksheets,Exam Review,Pictograms (Body Marks),System Setup Menu
