Sonostar V6 Portable B/W Veterinary Ultrasound Scanner Ultrasound Diagnostic System IP65 Waterproof
- Brand: Sonostar
- Availability: In Stock
-
Our Price:$3590.00
Sonostar V6 Portable B/W Veterinary Ultrasound Scanner Ultrasound Diagnostic System IP65 Waterproof
Feature:
1. 5.6 inch TFT screen
2. Pretty and very light
3. Full digital imaging technology, crystal-clear Image
4. Simple and convention on operation
5. Low power consumption
6. 8G Large volume storage image
7. Built-in battery
8. Solid shell and structure
9. Waterproof 10. Low cost
Product Paramenters
|
Display screen
|
5.6" TFT color screen
|
|
Scanning manner
|
Electronic convex array, electronic linear array
|
|
Working frequency
|
2.0MHz~10MHz
|
|
Display mode
|
B, B+B
|
|
Scanning range
|
Convex array 60°~150°
|
|
Amplification factor
|
1.0, 1.2, 1.5,2.0
|
|
Image processing
|
8 γ corrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo
color processing, etc |
|
Conventional measurements
|
Distance, perimeter, area, volume
|
|
Obstetric measurement
|
horses, cattle, sheep, dogs, cats obstetric measurement
|
|
Image gray-scale
|
256 levels
|
|
Scanning line number
|
512 lines/frame
|
|
Frame rate
|
30 frames/second
|
|
Digital scanning conversion
|
512×512×8 bits
|
|
Battery capacity:
|
3000mAH/7.4V, can work more than 2 hours
|
|
Memory capacity
|
8GB, can optional to 32GB
|
|
Report function
|
Auto make report
|
|
Output interface
|
USB port, video.
|
|
Overall size
|
225mm×145mm×25mm
|
|
Weight
|
900g(with battery)
|
|

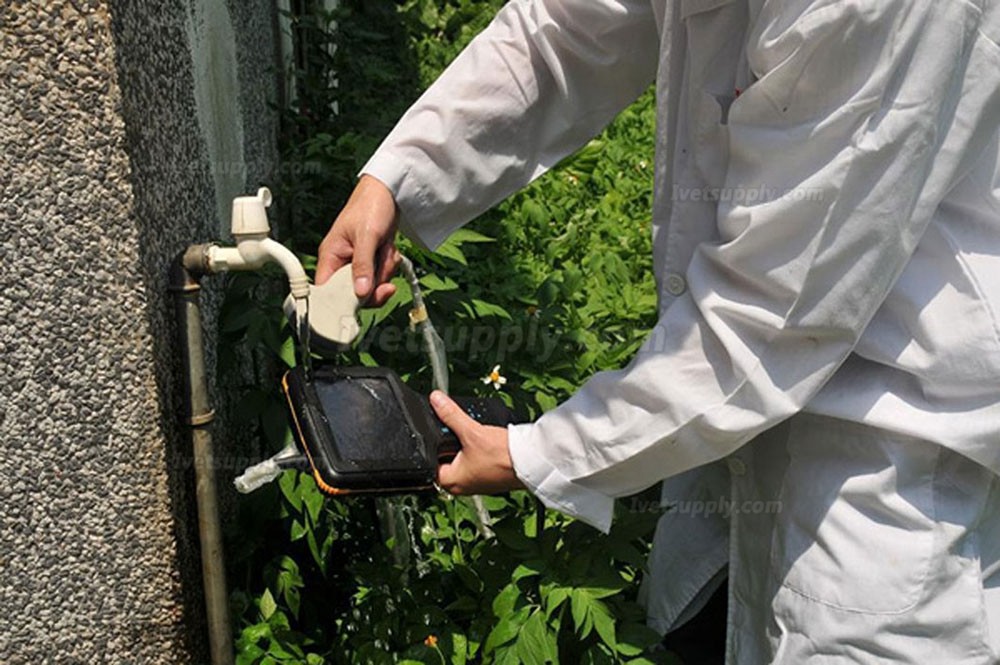

Waterproof
|
IP65
|
Configuration:
|
Standard Configuration
|
Optional Configuration
|
|
Host
|
Extra battery
|
|
convex probe
|
Larger storage
|
|
built-in battery
|
Can customized to with linear probe
|
|
power adapter
|
Micro-convex probe
|
|
bag
|
Rectal probe
|
|
/
|
Backfat probe
|
