Veterinary Dental Digital Image RVG X-Ray Sensor Dental Intraoral Imaging System
- Brand: Ivetsupply
- Availability: In Stock
-
Our Price:$998.99
Dental Digital Image RVG X-Ray Sensor Dental Intraoral Imaging System
Features:

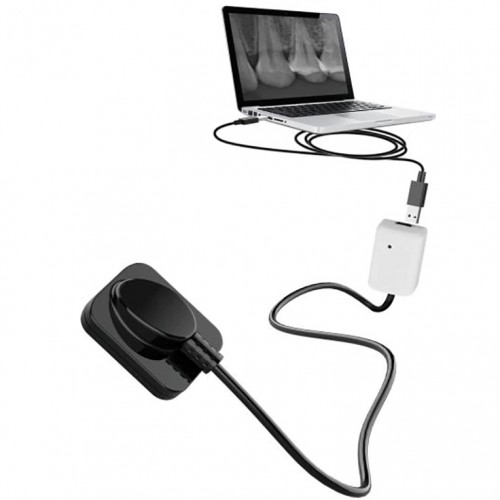

The product is mainly composed of a sensor, an adaptor, a USB connection cable and workstation software. Working together with an X-ray equipment, the product is intended to make X-ray radiography in dental clinics or veterinary clinics，Sensor size Suitable for child（adult single tooth）and pets.
Direct Imaging & High Efficiency
The whole imaging procedures go directly from data acquisition to immediate image display and reading. There is NO need for any plate reader.
USB Connection & Optimal Workflow
USB connection to the computer supports lighting-fast data transmission and enables real-time imaging. User-friendly design also helps to optimize workflow
Cost Effective
Our sensor/detector is totally digital, without a need for film processing. Moreover, our photon-counting detector is manufactured with standard microelectronics fabrication process, thus enjoying sizeable cost advantaqe.
Clear Display
Wide dynamic range and high contrast resolution work together to make unparalleled clarity for both the tooth and subtle details of the soft tissues.

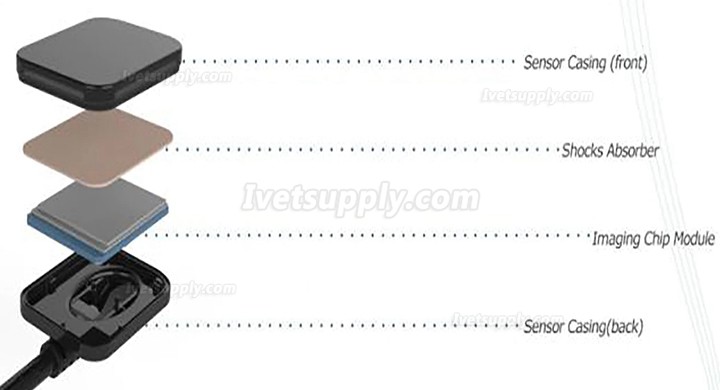

Profound Reliability
The sensor casing is purposely designed to resist shocks, bite, and drops to ensure product durability. It is absolutely waterproof, able to be immersed in disinfecting solution for better hygienic and safety protection. The protective sheaths reduce the risk of cross-contamination and protect plates from scratches and heat.

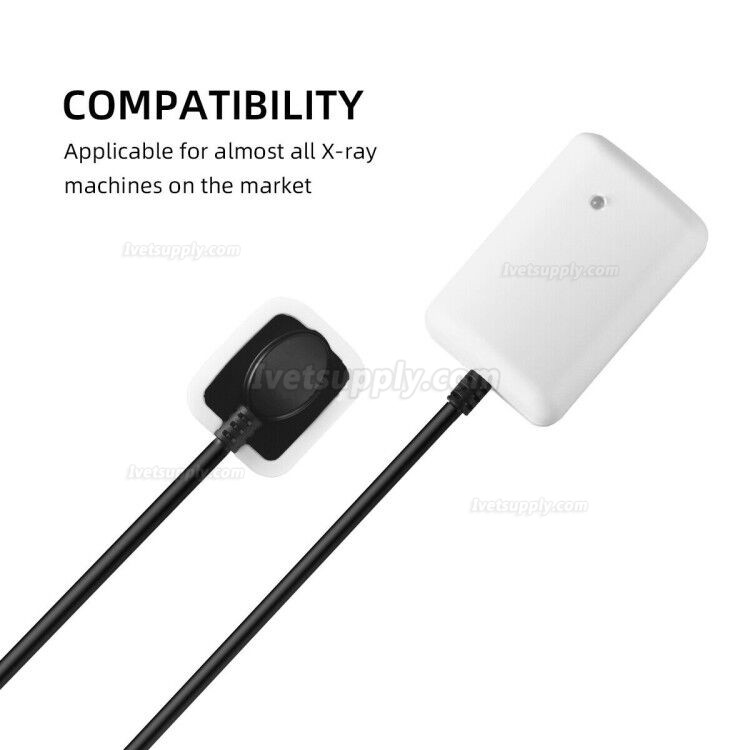

Extraordinary Usability
Compatible with the currently available imaging technology on the market, the sensor can work with both film and digital radiography sys ems, fitting well into most practices of radiography imaging applications.
Photon Counting Detector Technology
Photon counting detector technology is applied in intra-oral imaging for the first time, converting X-rays into digital signals directly; and vielding high dynamic range, hiah contrast-resolution images at comparatively lower dosage.
Powerful Post-Processing Software
Multiple image post-processing algorithms help to improve image contrast and sharoness with more exauisite details.
Hardware Requirements:
Central Processor: Intel Core i3 or higher
Internal Memory: 4GB or higher
Hard Disk: 80GB or higher
Display: 1280X1024
USB interface: two
Keyboard: One
Mouse: One
Software Requirement
Operating Software：Windows 7 SP1,8,10 32/64bit
Runtime: .Net Framework 4.6 or higher, VC++ 2015
Software Requirement:
Operating Software：Windows 7 SP1,8,10 32/64bit Runtime: .Net Framework 4.6 or higher, VC++ 2015
Specification:
Product Name: Image RVG x-ray Sensor
Detector Technology:Photon-counting
Product Model：XVS2121
Operating Voltage:5VDC
Connection:USB
Input power：500mW
Contrast Resolution: 16 bits
Spatial Resolution：≥7Lp/mm
Low contrast resolution ：Able to display holes with 1mm, 1.5mm, 2mm and 2.5mm diameter on the 0.5mm-thick aluminium foil
Image uniformity ≤2%
Effective image area： 20.16*20.16mm
Sensor Size：26.5mm×32mm×11.7mm
Adaptor Size：60mm×40mm×29.2mm
Total Cable Length: 3 m (sensor cable + control box cable to PC)
Warranty:1 Year

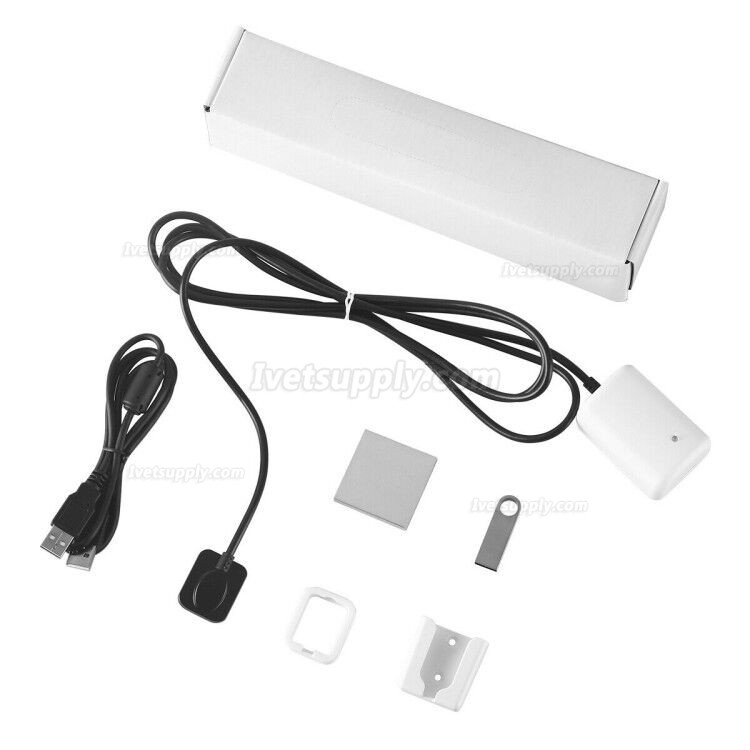

Accessories:
Digital sensor: 1 Set
USB cable :1 PCS
U Disk: 1PCS
Disposable protective sheath: 1 Box（500）
silicon loop: 1 PCS
Sensor holder: 1 PCS
Aluminum plate:1 PCS (40*40*6mm)
