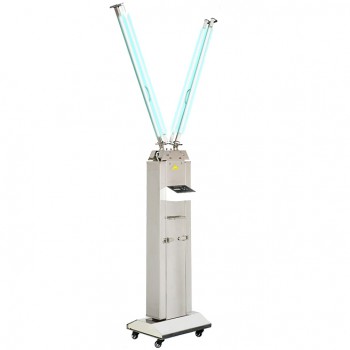

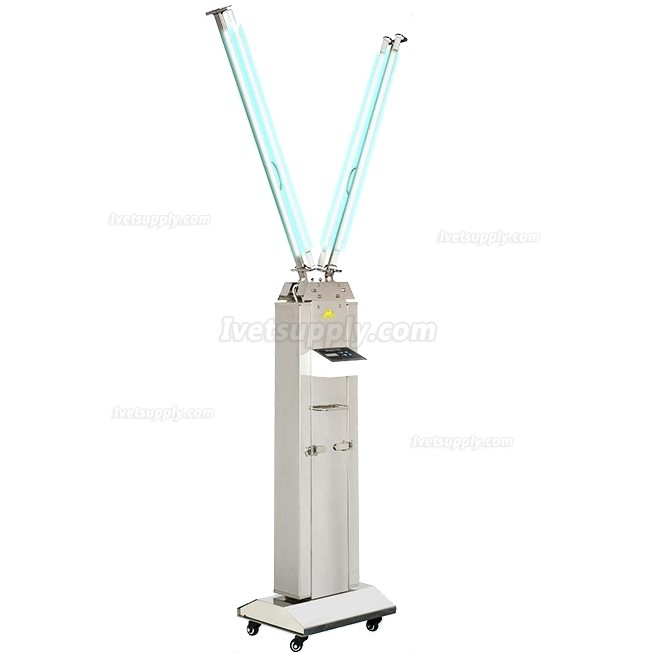

FY 120W-220W Portable UV+Ozone Disinfection Lamp Stainless Steel Trolley



FY-30FSI/ 50FSI (Four Tube Stainless Steel UV Lamp Trolley with Sensor) UV Room sterilizer FY-30FSI/ 50FSI,has 4 pieces of 30 watts/ 55watts UV lamps, emits a high intensity of ultraviolet light to the surface of the room, it can quickly and effectively sterilize all surfaces and air in a few minutes. Equipped with a timer of 0-1440 minutes, it is simpler and safer to use. The sterilizer is not only suitable for hospitals, but also widely used in schools, hotels, clinics, homes, cinemas, food manufacturing companies and offices.



This product is made of stainless steel,with its four-tube structures, but also can be used independently.





1.Tube Power:≥30W×4 / 55W×4

2.Number of tubes:4

3.Applicable static area:≥60m2

4.Voltage:220V±10%,Frequency:50Hz±10%

5.Input power:180VA

6.UV wavelength:253.7nm

7.Irradiance:≥428uw/cm2

8.It is movable and foldable,the tube could be concealed inside,and adjusted to various angles:30°,60°,90°,135°,180°.

9.It is equipped with a timer equipment with the time limitation of 0-1440 min.



1.Install the base with location hole and reed.

2.Open the protection door.

3.Lift the lamp arm and adjust to 90,135,190 degrees.

4.Insert the plug and press ‘ON’ button ,adjust 0-120mins timer.

5.Leave the room right now.

6.After finishing sterilization,press ‘OFF’ button.

7.Adjust timer to ‘OFF’.

8.Hold down the ‘adjustable button 3’ to adjust lamp arm to the box .

9.Close the protection door.



1.Clean the room before using uv room sterilizer.

2.Carefully place the UV Room Sterilizer in the center of the room or on a spot where UV light can beam more things in the room.

3.Arrange everything found in the room to ensure they will be exposed to UV light. Place things that are touched more often closer to the system to maximize sterilization.

4.Plug in and set the timer to the desired duration.The system has a time delay of 15 seconds upon timer setting,this allows the system operator to vacate the room.The UV light will be on after 15 seconds.Sterilization start . (We suggest a minimum of 30 minutes to a 30 sq.m.areas.)

5.When sterilizing pet or animal room,please make sure pets don’t touch the ultraviolet sterilizer.Please protect the eyes and skins of pets with shading cloth.

6."Lamp 1 "control 1 lamp,'lamp 2"control another 1 lamp.

7.It will generate smell after sterilization.It's perfectly natural.Open the window and ventilation for 10 minutes after sterilization.

8.Wipe the lamps with dry cloth after sterilization.Carefully stow the arms in the arms door.

9.UV illumination less than 70% or more than 2000 hours working should change the lamp.
