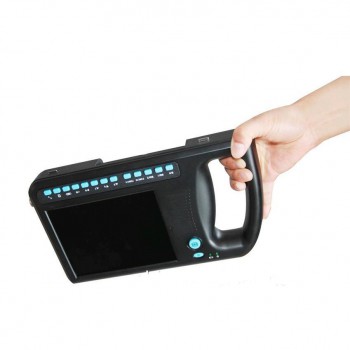

CONTEC CMS600S-VET Veterinary Portable Ultrasound Scanner PalmSmart Machine

CONTEC CMS600S VET Veterinary Portable Ultrasound Scanner PalmSmart Machine

Introduction

This equipment is high resolution linear/convex ultrasound scanner. It adopts micro-computer control and digital scan converter (DSC), digital beamforming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time dynamic receiving focusing (DRF), digital frequency scan (DFS), frame correlation technologies.The device is suitable for ultrasonic examination on abdominal and pelvic cavity organs.

Main Features

■ Video output offers connection to external video image printer and large-screen display and other equipments

■ High speed USB port provides real time image transfer to the PC

■ Combined power supply mode of AC adapter and built-in chargeable battery

■ the low power consumption and advanced power management technology promise more lasting battery operation

■ Field programmable gate array and surface mounted technology make this equipment compact and light in weight

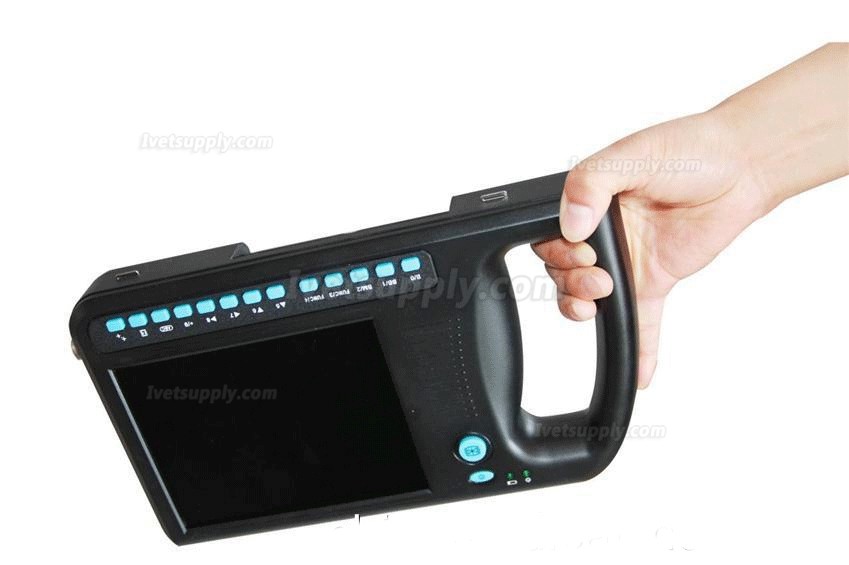

■ Jet molding enclosure with hand-held structure

Main Performance

Display mode: B, 2B, BM, M, 4B

Image gray scale: 256 Scale

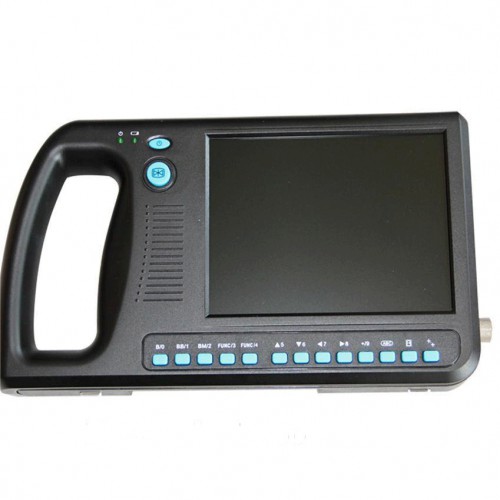

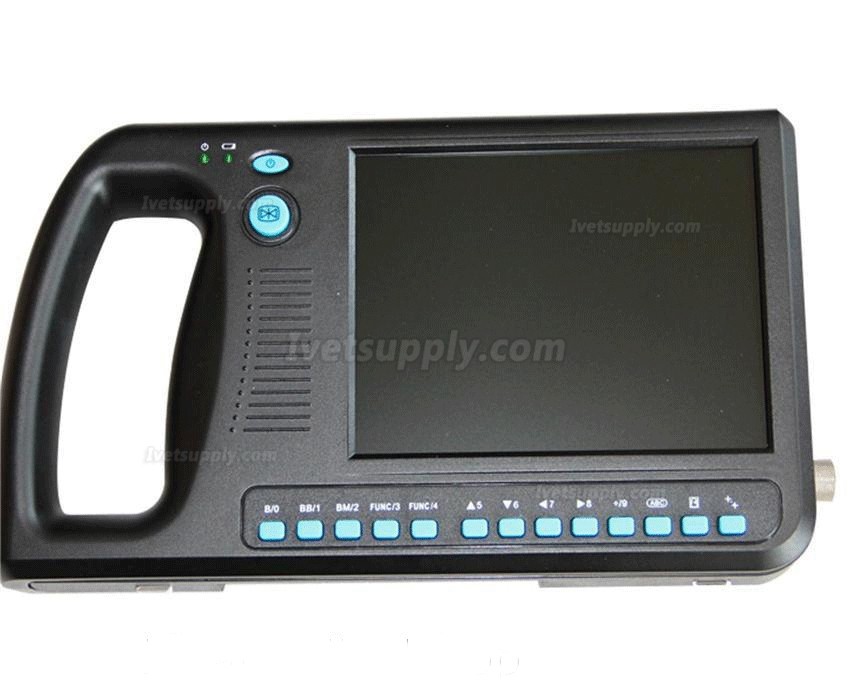

Monitor size: 7 Inch TFT LCD

Depth of penetration: ≥ 140 mm

Dead zone: ≤ 6 mm

Geometric: Horizontal ≤ 7.5%      Vertical ≤ 5%

Resolution: Lateral ≤3 (Depth≤80)   ≤5 (80＜Depth≤130)

                      Axial     ≤1 (Depth≤80)

Image conversion: Up/down, left/right, black/white

Image storage: 64 Frame

Cine loop: ≥400 Frame

Body mark: 40

Software: Obstetric, cardiology

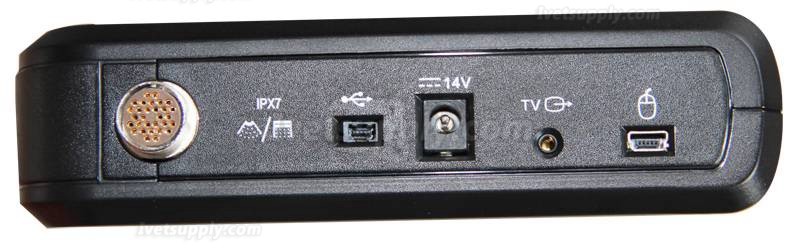

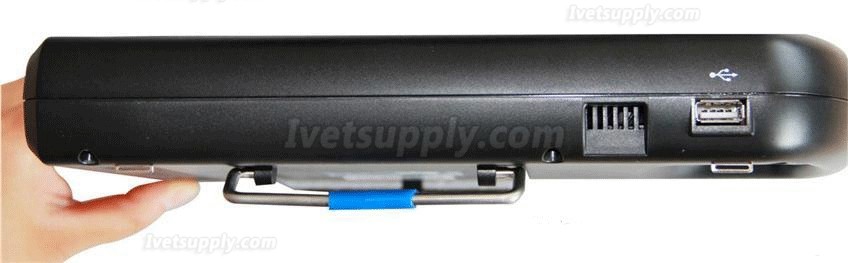

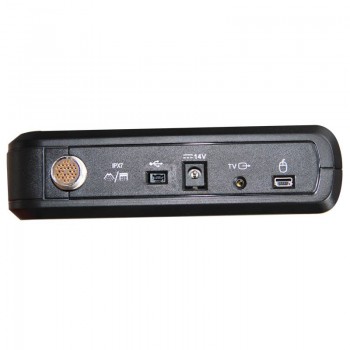

Interface: USB2.0, VIDEO, MOUSE

Measurement: Distance, circumference, area, volume, gestational age, expected date

Standrad Configuration

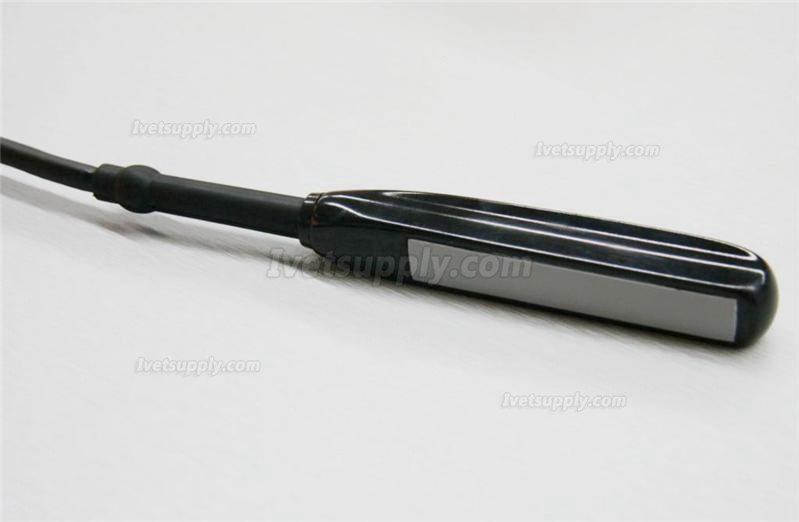

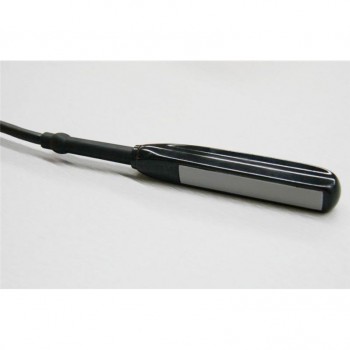

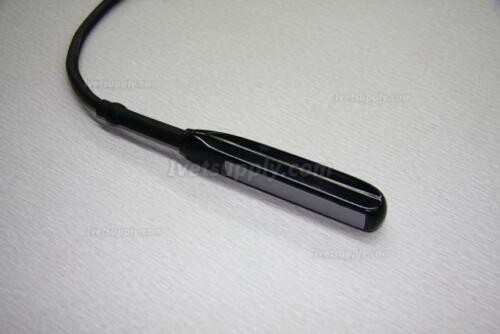

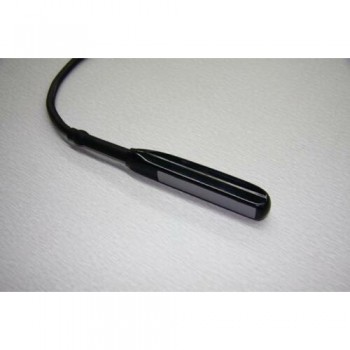

6.5 MHz Endorectal Linear Probe

Probe Frequency:5.0-7.5 MHz       Applications: Animal examination

Optional Configuration

3.5 MHz Convex Probe

Probe Frequency:2.5-5.0 MHz       Applications: Abdominal organs examination

7.5 MHz Linear Probe

Probe Frequency:6.5-8.5 MHz       Applications: Small part examination

5.0 MHz Micro-Convex Probe

Probe Frequency:4.0-5.5 MHz       Applications: Heart examination

Physical Identity

Dimension: 265 (L) × 153 (W) × 46 (H) mm

Weight: 0.8 kg
