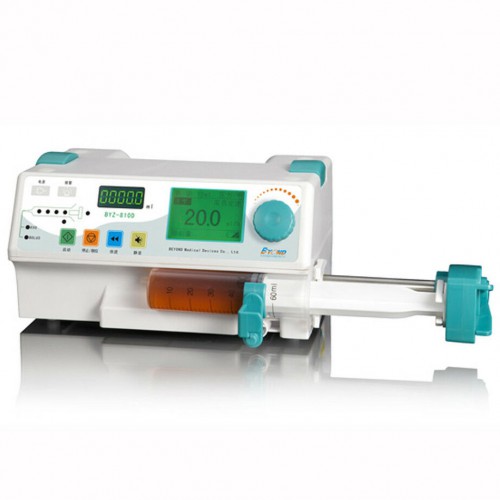

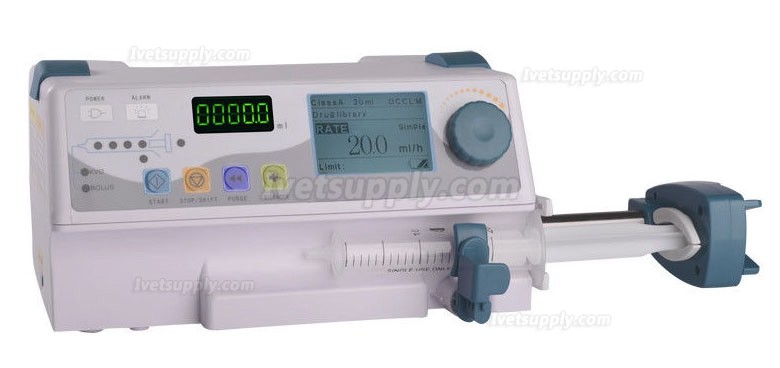

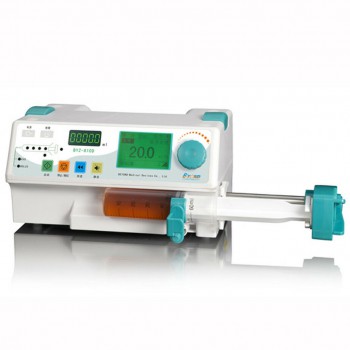

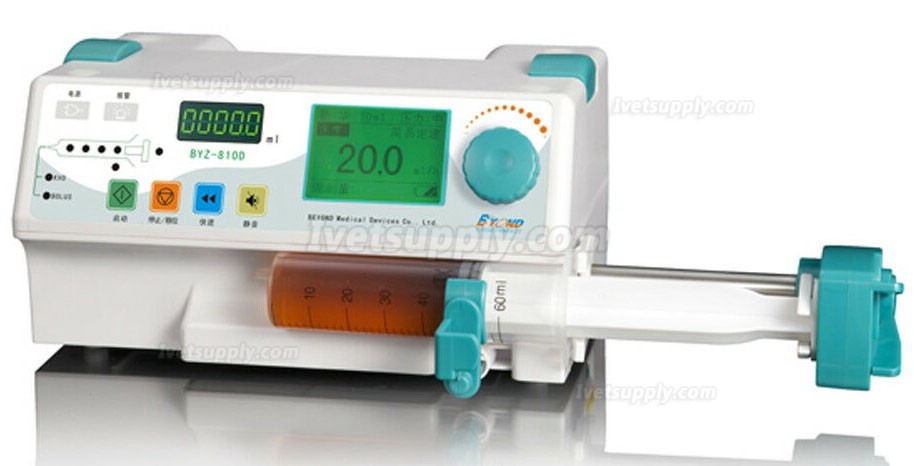

Byond Veterinary Single Channel Syringe Pump with LCD Display and Visual Alarm BYZ-810D

  • Brand: Beyond
  • Availability: In Stock
  • Our Price:$692.99

  • 8th Anniversary Promotion Price:$658.39

- +

Guaranty: 12 Months Warranty

Shipping: Fast Free Shipping Over $49!

Paypal Supports

Byond Single Channel Syringe Pump with LCD Display and Visual Alarm BYZ-810D


Features of Single Channel Syringe Pump

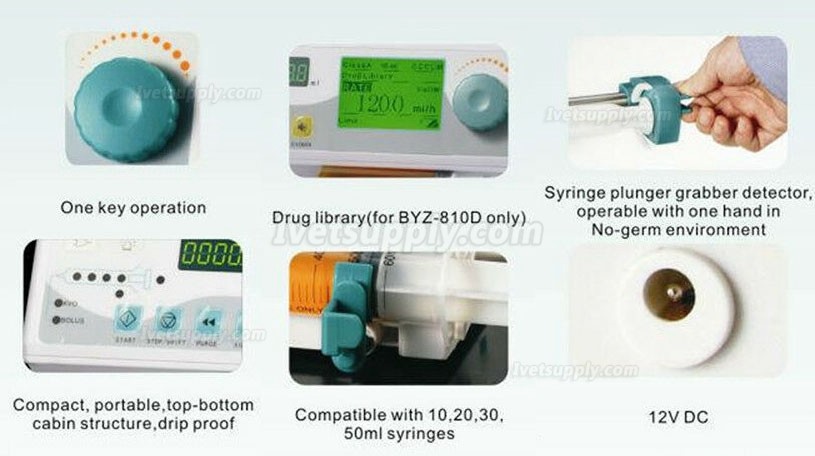

1. HD LCD Display, high capacity words, friendly user interface, dynamically display working status;
2. Audible and visual alarm for occlusion, empty, near empty, low battery, end of infusion, syringe loose, wrong setting, etc.;
3. Compatible with 5ml, 10ml, 20ml, 30ml, 50/60ml syringe of any brands;
4. Preset solution volume to greatly reduce the workload of nurses;
5. Three working modes: Rate mode, Time Volume mode, Dosage Weight mode;
6. Three levels of occlusion: high, medium and low;
7. Purge and Bolus function;
8. KVO (keep-vein-open) automatically opens as injection is completed, KVO rate is 0.1-5ml/h (0.1ml/h step);
9. Freely stackable: freely stack one syringe pump onto another to provide multiple solutions, which have a wide range of clinical applications;

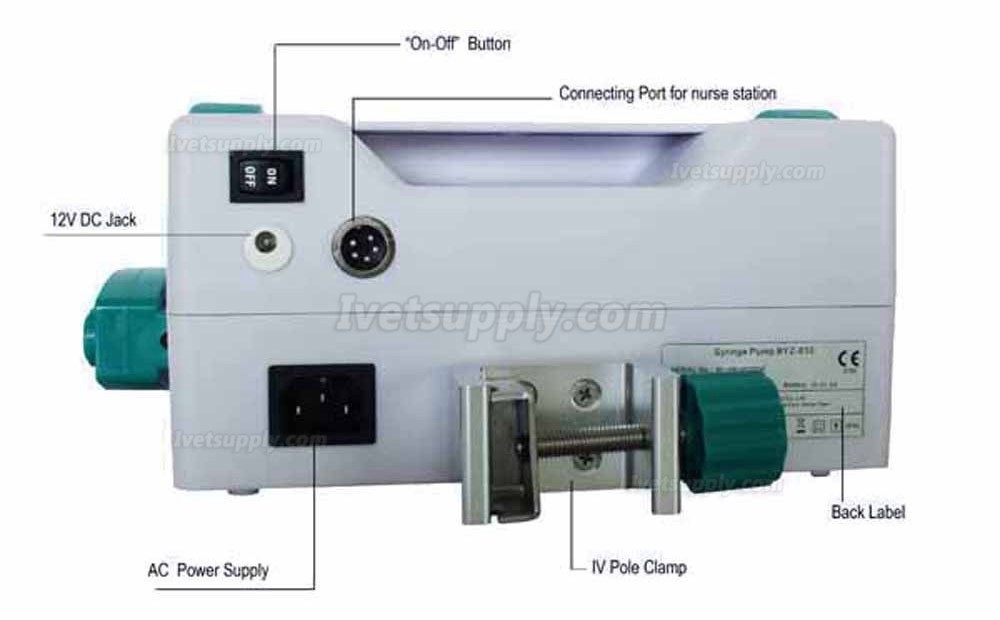

10. Power Source: AC100---240V, 50/60Hz; Internal Battery, DC12V car charge;
11. One-key operation makes setup easy and simple;
12. Syringe plunger grabble detector, operable with one hand in a No-Germ Environment;
13. Automatically record the settings of last injection;
14. BYZ-810D can store 2000pcs of injection records and it has a drug library;

Rate: 50/60ml Syringe: 0.1ml/h-999.9ml/h (0.1ml/h step)
                       1,000ml/h-1,500ml/h (1ml/h step)
         30ml Syringe: 0.1ml/h-900.0ml/h (0.1ml/h step)
         20ml Syringe: 0.1ml/h-600.0ml/h (0.1ml/h step)
         10ml Syringe: 0.1ml/h-300.0ml/h (0.1ml/h step)

Flow Rate Accuracy: Within ±3% (after correct calibration)
Mechanical precision: Within ±2%

Bolus Rate: 50/60ml Syringe: 1,200ml/h
            30 ml Syringe: 720ml/h
            20 ml Syringe: 480ml/h
            10 ml Syringe: 240ml/h

Purge Rate: 50/60ml Syringe: 1,500ml/h
            30ml Syringe: 900ml/h
            20ml Syringe: 600ml/h
            10ml Syringe: 300ml/h

Volume Limit: 0.1ml-9999.9ml (0.1ml step)
Total Injection Volume: 0.1ml-9999.9ml (0.1ml step)
Occlusion of Single Channel Syringe Pump:
High: 800mmHg ±200mmHg (106.7kPa±26.7kPa)
Medium: 50/600mmHg ±100mmHg (66.7kPa±13.3kPa)
Low: 300mmHg ±100mmHg (40.7kPa± 13.3kPa )
Alarms: Injection soon finish, end of injection, occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc.
Power Source: AC 100V-240V, 50/60Hz;
Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
KVO rate: 1ml/h
Fuse: F1AL/250/60V, 2pcs inside
Power Consumption: 30VA
IP Classification: IPX4
Equipment Classification: Class II, internal power supply, Type CF
Operating Condition:
Ambient temperature: +5℃——+40℃
Transport & Storage Condition:
Ambient temperature:-30℃——+55℃
Relative humidity: ≤95%
Dimension: 280mm (L) ×210mm (W) ×130mm(H)

Byond Veterinary Single Channel Syringe Pump with LCD Display and Visual Alarm BYZ-810D

Byond Veterinary Single Channel Syringe Pump with LCD Display and Visual Alarm BYZ-810D

Byond Veterinary Single Channel Syringe Pump with LCD Display and Visual Alarm BYZ-810D

Byond Veterinary Single Channel Syringe Pump with LCD Display and Visual Alarm BYZ-810D
Prev:  BYOND BYZ-810TU Dual Channel Veterinary Syringe Pump with Audible Alarm
Next: BYOND Veterinary Single Channel Syringe Pump LCD Display Audible and visual alarm BYZ-810
05/30/2022

I have only used it w 10cc & 60cc syringes but the way it is designed it should work with a 5cc as well. The rate is completely adjustable and it has several syringes and syringe manufactures preprogrammed. The only thing about this one is to make sure that you get it placed in the exact right location so it plunges to the end of the actual syringe. It works perfectly wings of the barrel are on the right of the clamp. It will work on the left hand side but leaves about 0.5-0.8 in syringe.
