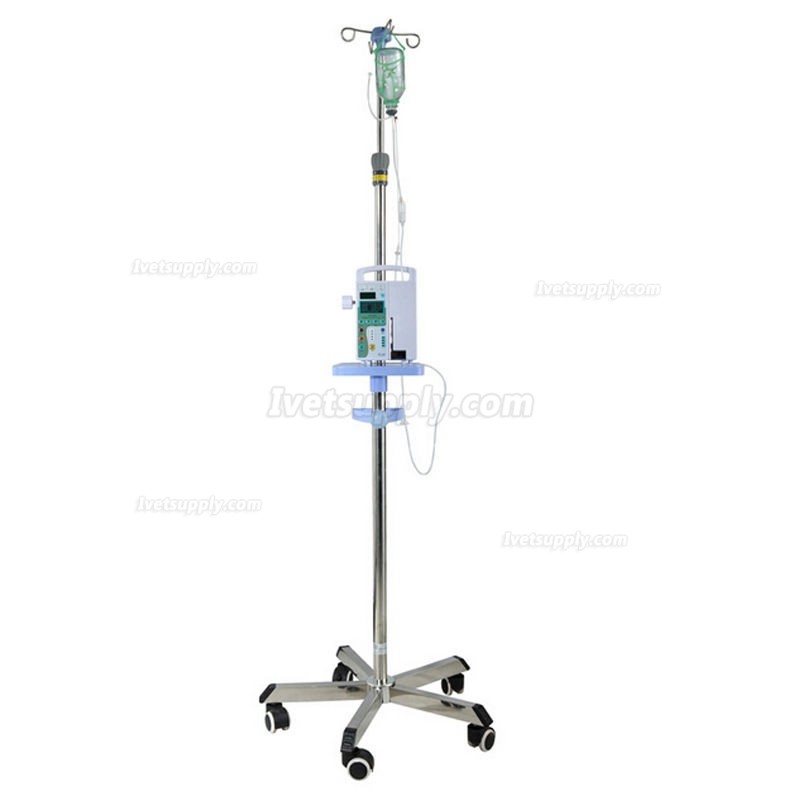

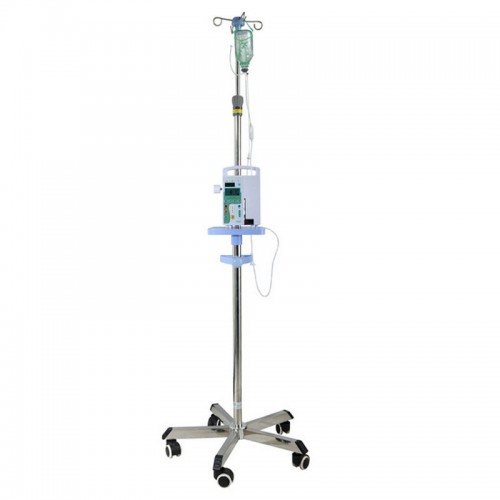

• Beyond® BYS-820D 1-channel Volumetric Veterinary Infusion Pump 1-1200ml/h with support

Beyond® BYS-820D 1-channel Volumetric Veterinary Infusion Pump 1-1200ml/h with support

  • Brand: Beyond
  • Availability: In Stock
  • Our Price:$733.99

  • 8th Anniversary Promotion Price:$697.29

- +
Buy More, Save More:
3-4 5-9 10-Max
$718.99 $696.99 $674.99

Guaranty: 12 Months Warranty

Shipping: Fast Free Shipping Over $49!

Paypal Supports

Beyond® BYS-820D 1-channel Volumetric Infusion Pump 1-1200ml/h



Beyond® BYS-820D 1-channel Volumetric Veterinary Infusion Pump 1-1200ml/h with support



Features of Infusion Pump

1. HD LCD Display, high capacity words, friendly user interface, dynamically display working status;

2. Audible and visual alarm for occlusion, empty, low battery, end of infusion, door open, wrong setting, etc., which gain patents;

3. Compatible with any brands of infusion sets after correct calibration;

4. Preset solution volume to greatly reduce the workload of nurses;

5. Work mode: ml/h and drop/min can switch freely;

6. Three levels of occlusion: high, middle and low;

7. Purge function;

8. KVO (keep-vein-open) automatically opens as infusion is completed, KVO rate is 1-5ml/h(1ml/h step);

9. Power Source: AC100---240V, 50/60Hz; Internal Battery;

10. Automatically record the settings of last infusion;

11. BYS-820D can store 2000pcs of infusion records and it has a drug library.



Specification of Infusion Pump



Rate

1ml/h ~ 1,200ml/h

Flow Rate Accuracy

Within ±5% (after correct calibration)

Mechanical precision

Within ±2%

Purge Rate

100ml/h ~ 1,000ml/h (100 ml/h step)

Infusion Volume

1ml ~ 9999ml

Total Infusion Volume

0.1ml ~ 9999.9ml

KVO rate

1ml/h ~ 5 ml/h (1ml/h step)

Occlusion

High: 800mmHg ±200mmHg (106.7kPa±26.7kPa
Medium: 500mmHg ±100mmHg(66.7kPa±13.3kPa
Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa )

Unique audible and visible alarm

Human voice alarm for End of injection, occlusion, door open, bubbles in the tube, wrong setting, low battery, AC power pulled out etc.

Power Source

AC 100V ~ 240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup

Bubble detector

Ultrasonic wave detector; detection sensitivity ≥25μL

Fuse

F1AL/250V, 2 pc inside

Power Consumption

18VA

Operating Condition

Ambient temperature: +5℃ ~ +40℃;
Relative humidity: 20 ~ 90%
Atmospheric pressure: 86.0kpa ~ 106.0kpa

Transport & Storage Condition

Ambient temperature:-30℃ ~ +55℃
Relative humidity: ≤95%

Equipment Classification

Class II, internal power supply, Type CF

IP Classification

IPX4

Dimension

140mm (L) ×157mm(W) ×220mm(H)

Weight

1.8kg (net weight)
