Beyond® BYS-820 Veterinary Infusion Pump without Support
- Brand: Beyond
- Availability: In Stock
-
Our Price:$503.99

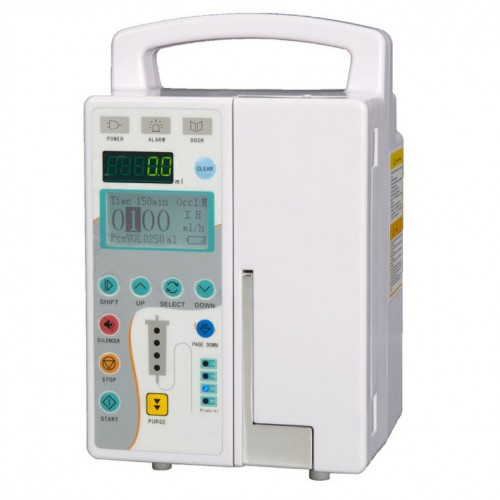

Beyond® BYS-820 Infusion Pump without Support
Features of Infusion Pump
1. HD LCD Display, high capacity words, friendly user interface, dynamically display working status;
2. Audible and visual alarm for occlusion, empty, low battery, end of infusion, door open, wrong setting, etc., which gain patents;
3. Compatible with any brands of infusion sets after correct calibration;
4. Preset solution volume to greatly reduce the workload of nurses;
5. Work mode: ml/h and drop/min can switch freely;
6. Three levels of occlusion: high, middle and low;
7. Purge function;
8. KVO (keep-vein-open) automatically opens as infusion is completed, KVO rate is 1-5ml/h(1ml/h step);
9. Power Source: AC100---240V, 50/60Hz; Internal Battery;
10. Automatically record the settings of last infusion;
11. OEM is available.
Specification of Infusion Pump
Rate:1ml/h ~ 1,200ml/h
Flow Rate Accuracy:Within ±5% (after correct calibration)
Mechanical precision:Within ±2%
Purge Rate:100ml/h ~ 1,000ml/h (100 ml/h step)
Infusion Volume:1ml ~ 9999ml
Total Infusion Volume:0.1ml ~ 9999.9ml
KVO rate:1ml/h ~ 5 ml/h (1ml/h step)
Occlusion:
High: 800mmHg ±200mmHg (106.7kPa±26.7kPa
Medium: 500mmHg ±100mmHg(66.7kPa±13.3kPa
Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa )
Unique audible and visible alarm:
Human voice alarm for End of injection, occlusion, door open, bubbles in the tube, wrong setting, low battery, AC power pulled out etc.
Power Source:
AC 100V ~ 240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
Bubble detector:Ultrasonic wave detector; detection sensitivity ≥25μL
Fuse:F1AL/250V, 2 pc inside
Power Consumption:18VA
Operating Condition:
Ambient temperature: +5℃ ~ +40℃;
Relative humidity: 20 ~ 90%
Atmospheric pressure: 86.0kpa ~ 106.0kpa
Transport & Storage Condition
Ambient temperature:-30℃ ~ +55℃
Relative humidity: ≤95%
Equipment Classification:Class II, internal power supply, Type CF
IP Classification:IPX4
Dimension:140mm (L) ×157mm(W) ×220mm(H)
Weight:1.8kg (net weight)
